Jeep Liberty: Retractable Cargo Area Cover — If Equipped - Cargo Load Floor - Cargo Area Features - Understanding The Features Of Your Vehicle - Jeep Liberty Owner's ManualJeep Liberty: Retractable Cargo Area Cover — If Equipped

NOTE: The purpose of this cover is for privacy, not to secure loads. It will not prevent cargo from shifting or protect passengers from loose cargo.

The removable retractable cargo area cover mounts in the cargo area behind the top of the rear seats.

The cover, when extended, covers the cargo area to keep items out of sight. Notches in the trim panels near the liftgate opening secure the extended cover in place.

The cover rolls away neatly inside its housing when not in use. You can also remove the cover from the vehicle to make more room in the cargo area.

To install the cover, position it in the vehicle so that the flat side of the housing faces upward. Then, insert either the left or the right spring-loaded post (located on the ends of the cover housing) into either of the left or the right attachment points shown.

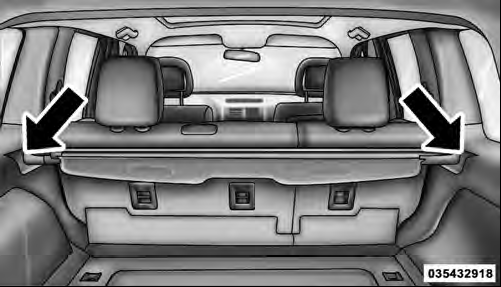

Installing Retractable Cargo Area Cover
Installing Retractable Cargo Area Cover

Then, insert the spring-loaded post on the opposite end of the cover housing into the attachment point on the opposite side of the vehicle.

Next, grab the cover handle and pull the cover toward you. As the cover nears the liftgate opening, guide the rear attachment posts (on both ends of the cover) into the notches in the trim panels. Then, lower the cover to position the posts into the bottom of the notches and release the handle.

Positioning Retractable Cargo Area Cover
Positioning Retractable Cargo Area Cover

WARNING!
In a collision, a cargo cover loose in the vehicle could cause injury. It could fly around in a sudden stop and strike someone in the vehicle. Do not store the cargo cover on the cargo floor or in the passenger compartment.

Remove the cover from the vehicle when taken from its mounting. Do not store in the vehicle.

    Cargo Tie-Down Hooks And Loops
    The tie-downs located on cargo area floor should be used to secure loads safely when the vehicle is moving. Cargo Tie-Down Hooks Cargo Tie-Down Loops Cargo tie-down loops are located on the t ...
