Jeep Liberty: Cargo Tie-Down Hooks And Loops - Cargo Load Floor - Cargo Area Features - Understanding The Features Of Your Vehicle - Jeep Liberty Owner's ManualJeep Liberty: Cargo Tie-Down Hooks And Loops

The tie-downs located on cargo area floor should be used to secure loads safely when the vehicle is moving.

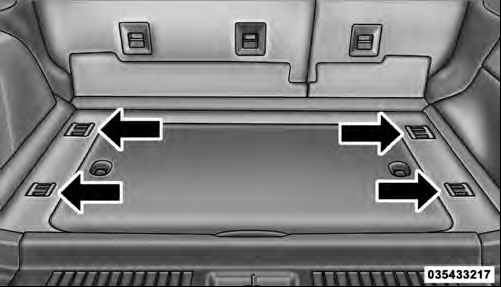

Cargo Tie-Down Hooks
Cargo Tie-Down Hooks

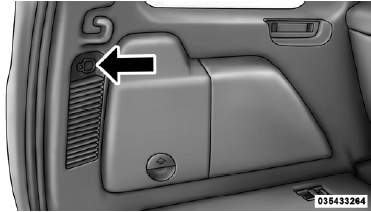

Cargo Tie-Down Loops
Cargo Tie-Down Loops

Cargo tie-down loops are located on the trim panels.

WARNING!
• Cargo tie-downs are not safe anchors for a child seat tether strap. In a sudden stop or accident, a tie-down could pull loose and allow the child seat to come loose. A child could be badly injured. Use only the anchors provided for child seat tethers.

• To help protect against personal injury, passengers should not be seated in the rear cargo area. The rear cargo space is intended for load carrying purposes only, not for passengers, who should sit in seats and use seat belts.

The weight and position of cargo and passengers can change the vehicle center of gravity and vehicle handling. To avoid loss of control resulting in personal injury, follow these guidelines for loading your vehicle:

• Do not carry loads that exceed the load limits described on the label attached to the left door or left door center pillar.

• Always place cargo evenly on the cargo floor. Put heavier objects as low and as far forward as possible.

• Place as much cargo as possible in front of the rear axle. Too much weight or improperly placed weight over or behind the rear axle can cause the vehicle to sway.

Do not pile luggage or cargo higher than the top of the seatback. This could impair visibility or become a dangerous projectile in a sudden stop or accident.

    Accessing The Storage Bin
    NOTE: The spring-loaded latches that retain the storage bin cover to the cargo load floor should not be used as cargo tie-downs. 1. Flip the spring-loaded latch pull-loops up. Cargo Load Floor ...

    Retractable Cargo Area Cover — If Equipped
    NOTE: The purpose of this cover is for privacy, not to secure loads. It will not prevent cargo from shifting or protect passengers from loose cargo. The removable retractable cargo area cover mou ...
