Volvo XC60: Releasing the electric parking brake

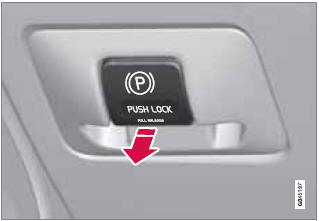

Parking brake control
Manual release
1. Fasten the seat belt.
2. Insert the remote key in the ignition slot (or press the START/STOP ENGINE button on vehicles with the optional keyless drive).
3. Press firmly on the brake pedal.
4. Pull the parking brake control.
Automatic release
1. Start the engine.
NOTE
• For safety reasons, the parking brake is
only released automatically if the engine
is running and the driver is wearing a seat
belt.
• The electric parking brake will be
released immediately when the accelerator
pedal is pressed and the gear selector
is in position D or R.
2. Fasten the seat belt.
3. Move the gear selector to position D or R and press the accelerator pedal. The parking brake will release when the vehicle begins to move.
Heavy load uphill
A heavy load, such as a trailer, can cause the vehicle to roll backward when the parking brake is released automatically on a steep incline. To help avoid this:
1. Keep the electric parking brake lever pushed in with the left hand while shifting into Drive with the right.
2. While pressing the throttle pedal to pull away, release the parking brake lever only after the vehicle begins to move.
Parking on a hill
• If the vehicle is pointing uphill, turn the front wheels so that they point away from the curb. • If the vehicle is pointing downhill, turn the front wheels so that they point toward the ...Symbols
