Jeep Liberty: Supplemental Restraint System (SRS) — Air Bags - Occupant Restraints - Things To Know Before Starting Your Vehicle - Jeep Liberty Owner's ManualJeep Liberty: Supplemental Restraint System (SRS) — Air Bags

This vehicle has Advanced Front Air Bags for both the driver and front passenger as a supplement to the seat belt restraint systems. The driver’s Advanced Front Air Bag is mounted in the steering wheel. The passenger’s Advanced Front Air Bag is mounted in the instrument panel, above the glove compartment. The words SRS/ AIRBAG are embossed on the air bag covers.

NOTE: These air bags are certified to the new Federal regulations for Advanced Air Bags.

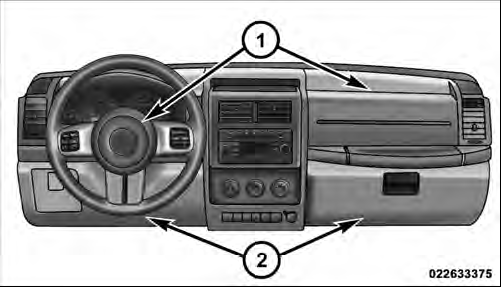

Advanced Front Air Bag And Knee Bolster Locations
Advanced Front Air Bag And Knee Bolster Locations

1 — Driver And Passenger Advanced Front Air Bags
2 — Knee Bolster

The Advanced Front Air Bags have a multistage inflator design. This allows the air bag to have different rates of inflation that are based on the severity and type of collision.

This vehicle may be equipped with driver and/or front passenger seat track position sensors that may adjust the inflation rate of the Advanced Front Air Bags based upon seat position.

This vehicle may be equipped with a driver and/or front passenger seat belt buckle switch that detects whether the driver or front passenger seat belt is fastened. The seat belt buckle switch may adjust the inflation rate of the Advanced Front Air Bags.

This vehicle is equipped with Supplemental Side Air Bag Inflatable Curtains (SABIC) that run the entire length of the headliner to protect the driver and passengers in the first and second row sitting next to a window.

Supplemental Side Air Bag Inflatable Curtains (SABIC) Label Location
Supplemental Side Air Bag Inflatable Curtains (SABIC) Label Location

NOTE:
• Air Bag covers may not be obvious in the interior trim, but they will open during air bag deployment.

• After any accident, the vehicle should be taken to an authorized dealer immediately.
