Mercedes-Benz GLK-Class: Releasing the cargo net - Cargo net - Stowage areas - Stowing and features - Mercedes-Benz GLK-Class Owner's ManualMercedes-Benz GLK-Class: Releasing the cargo net

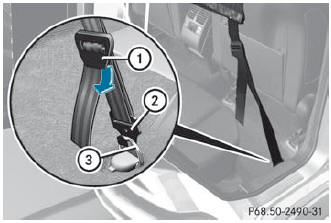

Seat belt reel holder behind the front seats

Seat belt reel holder behind the front seats

  • Pull belt adjuster 1 upwards in the direction of the arrow to reduce the tension on the tensioning strap.
  • Unhook belt hook 2 from cargo tie-down ring 3.
    Tightening the cargo net
    Seat belt reel holder behind the front seats Insert belt hook 1 into cargo tie-down ring 2 in the direction of the arrow. Pull tensioning strap 3 by the loose end in the direction of the ar ...

    Detaching and storing the cargo net
    Detach guide rod 2 from bracket 1 (). Press the red button on the upper and lower guide rods. Fold the cargo net and roll it up. Close the two Velcro fasteners on the cargo net holder. ...
