GMC Terrain: Engine Compartment Overview - Vehicle Checks - Vehicle Care - GMC Terrain Owner's ManualGMC Terrain: Engine Compartment Overview

2.4L L4 Engine

2.4L L4 Engine

A. Engine Air Cleaner/Filter on page 10‑14.
B. Engine Cover on page 10‑9.
C. Engine Oil Dipstick (Out of View). See Engine Oil on page 10‑10.
D. Engine Oil Fill Cap. See Engine Oil on page 10‑10.
E. Brake Fluid Reservoir. See Brakes on page 10‑23.
F. Engine Compartment Fuse Block on page 10‑38.
G. Remote Positive (+) Terminal. See Jump Starting on page 10‑76.
H. Remote Negative (−) Terminal. See Jump Starting on page 10‑76.
I. Battery on page 10‑26 (Out of View).
J. Engine Coolant Surge Tank and Pressure Cap. See Engine Coolant on page 10‑17.
K. Windshield Washer Fluid Reservoir. See Washer Fluid on page 10‑23.

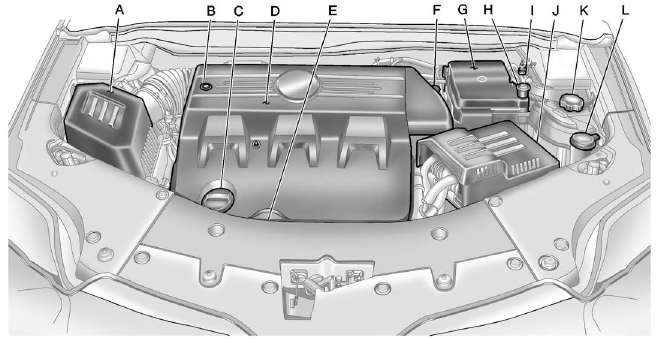

3.0L V6 Engine

3.0L V6 Engine

A. Engine Air Cleaner/Filter on page 10‑14.
B. Power Steering Fluid Reservoir (Under Engine Cover). See Power Steering Fluid (2.4L L4 Engine) on page 10‑22 or Power Steering Fluid (3.0L V6 Engine) on page 10‑22.
C. Engine Oil Fill Cap. See Engine Oil on page 10‑10.
D. Engine Cover on page 10‑9.
E. Engine Oil Dipstick (Out of View). See Engine Oil on page 10‑10.
F. Brake Fluid Reservoir. See Brakes on page 10‑23.
G. Engine Compartment Fuse Block on page 10‑38.
H. Remote Positive (+) Terminal. See Jump Starting on page 10‑76.
I. Remote Negative (−) Terminal. See Jump Starting on page 10‑76.
J. Battery on page 10‑26 (Out of View).
K. Engine Coolant Surge Tank and Pressure Cap. See Engine Coolant on page 10‑17.
L. Windshield Washer Fluid Reservoir. See Washer Fluid on page 10‑23.

    Hood
    To open the hood: 1. Pull the release handle located below the instrument panel to the left of the steering wheel. 2. Move the secondary hood release lever to the right to release the striker. ...

    Engine Cover
    Engine Cover 3.0L V6 A. Oil Fill Cap B. Engine Cover Bolt C. Engine Cover To remove: 1. Remove the oil fill cap (A). 2. Remove the engine cover bolt (B). 3. Raise the engine cover (C) to rele ...
