Ford Escape: Normal scheduled maintenance and log
Intelligent Oil Life Monitor™

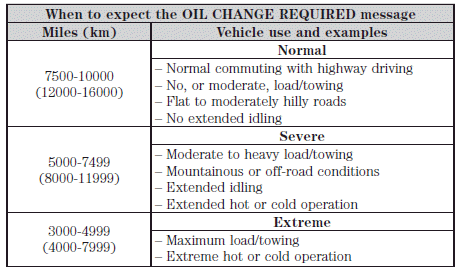

Your vehicle is equipped with an Intelligent Oil Life Monitor™ that determines when the engine oil should be changed based on how your vehicles is used. By using several important factors in its calculations, the monitor helps reduce the cost of owning your vehicle and reduce environmental waste at the same time. This means you won’t have to remember to change the oil on a mileage-based schedule; the vehicle lets you know when an oil change is due by displaying ENGINE OIL CHANGE DUE or OIL CHANGE REQUIRED in the message center. The following table is intended to provide examples of vehicle use and its impact on engine oil change intervals; it is provided as a guideline only.
Actual engine oil change intervals will depend on several factors and will generally decrease with severity of use.

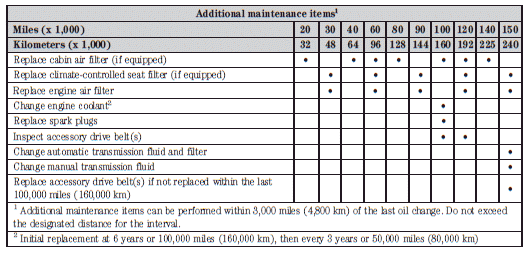

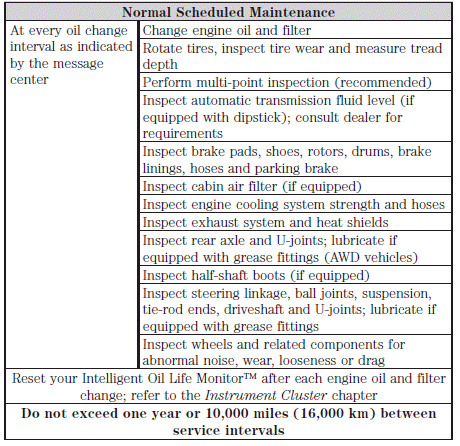

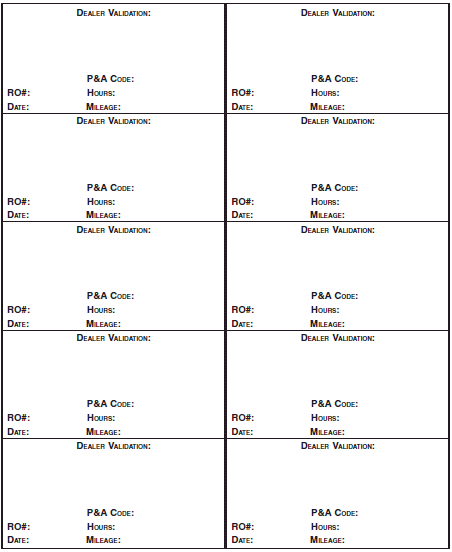

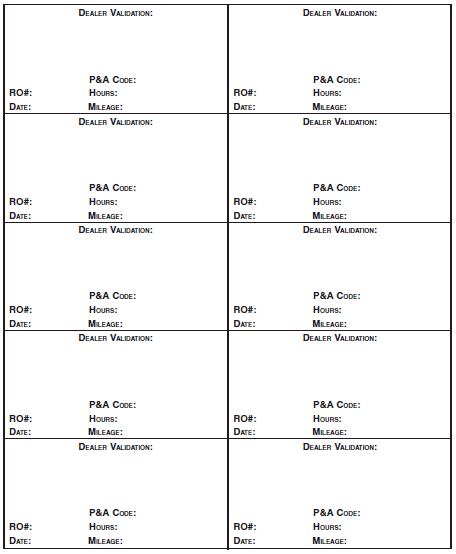

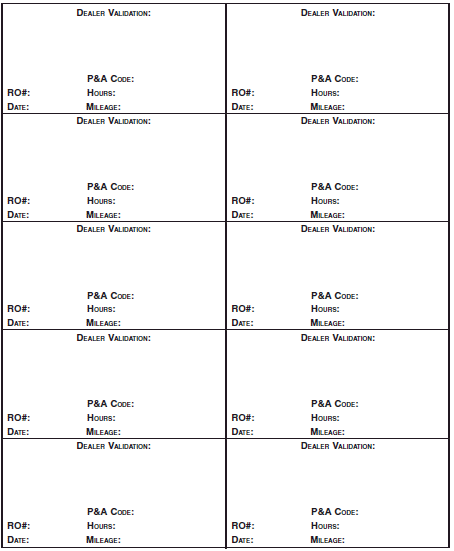

Maintenance schedule log
General maintenance information
See also:
4-wheel drive operation
Your vehicle has been designed primarily for use on pavement. But its unique
4-wheel drive system allows you to occasionally travel on unpaved roads, to campgrounds,
picnic sites, and similar locations. Not only does this ensure better handling o ...
ENGINE COMPARTMENT — 3.7L
1 — Air Cleaner Filter.
6 — Washer Fluid Reservoir.
2 — Engine Oil Dipstick.
7 — Engine Coolant Reservoir.
3 — Brake Fluid Reservoir.
8 — Engine Oil Fill.
4 — Integrated Power Module.
9 — Coolant Pressure Cap.
5 ...
