Jeep Liberty: Garage Door Opener — If Equipped - Understanding The Features Of Your Vehicle - Jeep Liberty Owner's ManualJeep Liberty: Garage Door Opener — If Equipped

HomeLink replaces up to three hand-held transmitters that operate devices such as garage door openers, motorized gates, lighting or home security systems. The HomeLink unit is powered by your vehicles 12 Volt battery.

The HomeLink buttons, located on either the overhead console, headliner or sunvisor, designate the three different HomeLink channels. The HomeLink indicator is located above the center button.

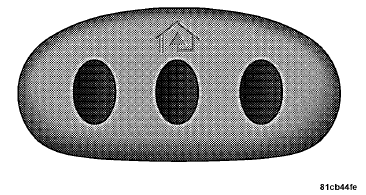

HomeLink Buttons/Overhead Consoles
HomeLink Buttons/Overhead Consoles

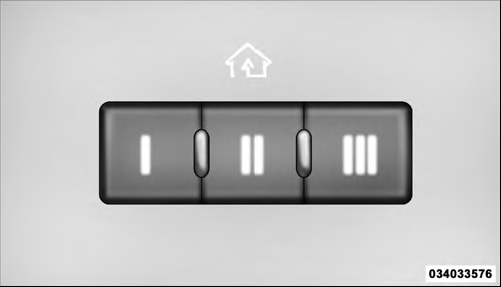

HomeLink Buttons/Sunvisor/Headliner
HomeLink Buttons/Sunvisor/Headliner

NOTE: HomeLink is disabled when the Vehicle Security Alarm is active.
