Jeep Liberty: Shift Positions - Selec-Trac II Transfer Case – If Equipped - Four-Wheel Drive Operation - Starting And Operating - Jeep Liberty Owner's ManualJeep Liberty: Shift Positions

The transfer case switch is located on the center console next to the shift lever.

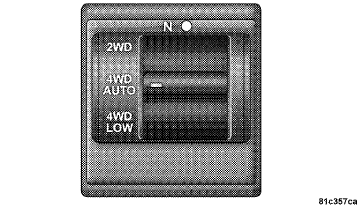

Transfer Case Switch
Transfer Case Switch

2WD

Rear Wheel Drive High Range - This range is for normal street and highway driving on dry hard-surfaced roads.

4WD Auto

Four-Wheel Drive Auto High Range – This active ondemand range makes available optimum traction for a wide range of conditions, while maximizing driver convenience.

This position is always in four-wheel drive mode, with a normal 42% front axle, 58% rear axle torque split. The system also anticipates and prevents slip by redirecting torque as necessary, up to 100% to the front or rear axle, if needed.

4WD Low

Four-Wheel Drive Low Range - This range is for low speed four-wheel drive. Locks the front driveshaft and rear driveshaft together forcing the front and rear wheels to rotate at the same speed. Additional traction and maximum pulling power for loose or slippery road surfaces only. Do not exceed 25 mph (40 km/h).

N

Neutral - This range disengages both the front driveshaft and rear driveshaft from the powertrain. To be used for flat towing behind another vehicle. Refer to “Recreational Towing” in “Starting and Operating” for further information.
