Jeep Liberty: Rear Tail/Stop, Turn Signal, And Back-Up Lamp - Bulb Replacement - Maintaining Your Vehicle - Jeep Liberty Owner's ManualJeep Liberty: Rear Tail/Stop, Turn Signal, And Back-Up Lamp

Jeep Liberty / Jeep Liberty Owner's Manual / Maintaining Your Vehicle / Bulb Replacement / Rear Tail/Stop, Turn Signal, And Back-Up Lamp

1. Open the liftgate.

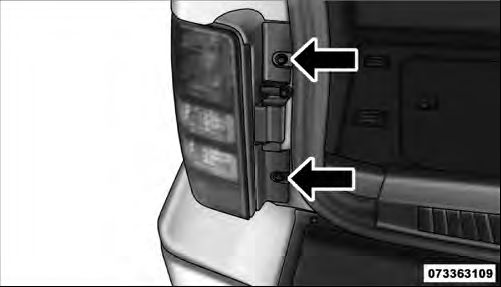

2. Remove the screws that fasten the taillamp housing to the vehicle.

3. Pull the taillamp housing straight back to separate it

3. Pull the taillamp housing straight back to separate it from the vehicle.

4. Disconnect the electrical connector.

5. Remove the two screws that fasten the back plate to the taillamp housing.

6. Separate the back plate from the taillamp housing.

7. Pull the appropriate bulb(s) out of the back plate and insert the replacement bulb(s).

8. Install the back plate and screws into the taillamp housing.

9. Connect the electrical connector.

10. Install the taillamp housing and screws.

11. Close the liftgate.
