Jeep Liberty: Intermittent Wiper System - Windshield Wipers And Washers - Understanding The Features Of Your Vehicle - Jeep Liberty Owner's ManualJeep Liberty: Intermittent Wiper System

Use the intermittent wiper system when weather conditions make a single wiping cycle with a variable pause between cycles desirable. Rotate the end of the windshield wiper/washer control lever to the first detent, and then turn the end of the lever to select the desired delay interval.

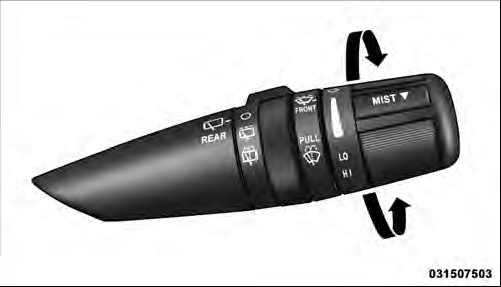

Front Wiper Control
Front Wiper Control

There are five delay settings, which allow you to regulate the wipe interval from a minimum of one cycle every second to a maximum of approximately 36 seconds between cycles or from a minimum of one cycle every second to a maximum of approximately 18 seconds between cycles at vehicle speeds greater than 10 mph (16 km/h).

NOTE: The wiper delay times depend on vehicle speed.

If the vehicle is moving less than 10 mph (16 km/h), delay times will be doubled.

    Windshield Wiper Operation
    Rotate the end of the lever upward to the second detent past the intermittent settings for low-speed wiper operation. Rotate the end of the lever upward to the third detent past the intermittent ...

    Windshield Washers
    To use the washer, pull the windshield wiper/washer control lever toward you and hold it for as long as washer spray is desired (for a maximum of 10 seconds). If you activate the washer while the ...
