Volvo XC60: Function - City Safety - Comfort and driving pleasure - Volvo XC60 Owner's ManualVolvo XC60: Function

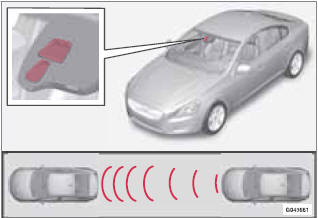

Location of the laser sensor in the windshield
Location of the laser sensor in the windshield

City Safety™ monitors traffic ahead of you using a laser sensor mounted in the upper section of the windshield. If a collision is imminent, City Safety™ will automatically apply the brakes, which may feel like hard braking.

If the difference in speed between your vehicle and the vehicle ahead is more than approximately 9 mph (15 km/h), City Safety™ alone cannot prevent a collision from taking place.

The driver must apply the brakes to help avoid a collision or reduce its effect.

When the function activates and applies the brakes, a message will appear in the information display to indicate that the system is/has been active.

NOTE
• When City Safety™ applies the brakes, the brake lights will illuminate.
• In cases where City Safety™ has stopped the vehicle, the system will then release the brakes. The driver must apply the brakes to keep the vehicle at a standstill.

    Introduction
    City Safety™1 is a support system designed to help the driver avoid low speed collisions when driving in slow-moving, stop-and-go traffic. City Safety™ is not active if your vehicle’s spe ...

    Using City Safety
    NOTE The City Safety™ function is activated automatically each time the engine has been switched off and restarted. On and Off In certain situations, it may be desirable to switch City Safe ...
