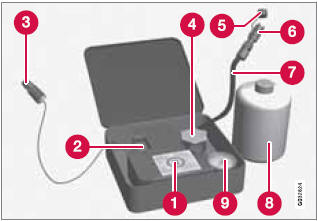

Volvo XC60: Tire sealing system–overview - Tire Sealing System - Wheels and tires - Volvo XC60 Owner's ManualVolvo XC60: Tire sealing system–overview

1 Speed limit sticker

1 Speed limit sticker
2 On/Off switch
3 Electrical wire
4 Bottle holder (orange cover)
5 Protective hose cover
6 Air release knob
7 Hose
8 Bottle with sealing compound
9 Air pressure gauge

WARNING
Please keep the following points in mind when using the tire sealing system:
• The sealing compound bottle (no. 8 in the illustration) contains 1.2-Ethanol and natural rubber-latex. These substances are harmful if swallowed.
• The contents of this bottle may cause allergic skin reactions or otherwise be potentially harmful to the skin, the central nervous system, and the eyes.
Precautions:
• Keep out of reach of children.
• Do not ingest the contents.
• Avoid prolonged or repeated contact with the skin.
• Hands should be washed thoroughly after handling.
First aid:
• Skin: Wash affected areas of skin with soap and water. Get medical attention if symptoms occur.
• Eyes: Flush with plenty of water for least 15 minutes, occasionally lifting the upper and lower eyelids. Get medical attention if symptoms occur.
• Inhalation: Move the person to fresh air. If irritation persists, get medical attention.

NOTE
Do not break the seal on the bottle. This occurs automatically when the bottle is screwed into the holder.

    Accessing the tire sealing system
    The tire sealing system is stowed under the floor of the cargo area. To access it: 1. Lift the floor hatch in the cargo area. 2. Lift out the tire sealing system. NOTE • The tire sealing syste ...

    Tire sealing system–temporarily repairing a flat tire
    Tire sealing system–temporarily repairing a flat tire Temporarily repairing a flat tire is done in two stages: • Stage 1: The hole is sealed by pumping sealing compound into the tire. The ...
