Mercedes-Benz GLK-Class: Securing the vehicle to prevent it from rolling away
WARNING
Only jack up the vehicle on level ground or on slight inclines/declines. The vehicle could otherwise fall off the jack and injure you or others.
If your vehicle is equipped with a wheel chock, it can be found in the vehicle tool kit ().

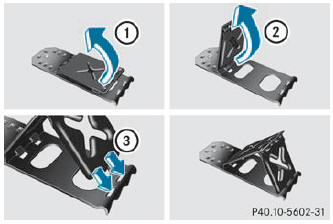

The folding wheel chock is an additional securing measure to prevent the vehicle from rolling away, for example when changing a wheel.
- Fold both plates upwards 1.
- Fold out lower plate 2.
- Guide the lugs on the lower plate fully into the openings in base plate 3.

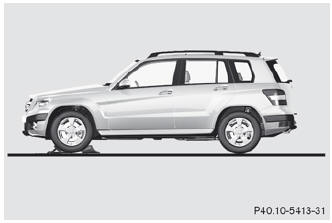

Securing the vehicle on level ground
X On level ground: place chocks or other suitable items under the front and rear of the wheel that is diagonally opposite the wheel you wish to change.

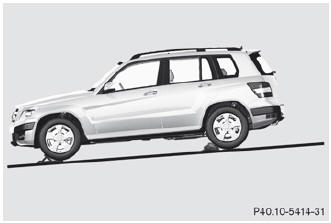

Securing the vehicle on slight downhill gradients
- On downhill gradients: place chocks or other suitable items in front of the wheels of the front and rear axle.
Preparing the vehicle
WARNING
The wheel and tire size of the emergency spare wheel/spare wheel may differ to
that of the damaged wheel. When using an emergency spare wheel/spare wheel the handling
characteristics ...
Raising the vehicle
WARNING
When jacking up the vehicle, only use the jack which has been specifically approved
by Mercedes-Benz for your vehicle.
The jack is designed exclusively for jacking up the vehicle at t ...
