Toyota RAV4: Vehicle identification
■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel.

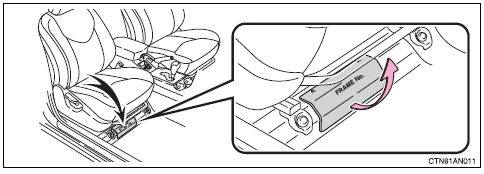

On some models, this number is stamped under the front passenger’s seat.
This number is also on the Certification Label.
■ Engine number
The engine number is stamped on the engine block as shown.
2.5 L 4-cylinder (2AR-FE) engine
3.5 L V6 (2GR-FE) engine
Dimensions and weights
*1: Without spare tire *2: 215/70R16 tires *3: 225/65R17 tires *4: 235/55R18 tires *5: With spare tire cover *6: Unladen vehicle *7: With third seats *8: With towing package ...Engine
