Jeep Liberty: Tread Wear Indicators - Tires — General Information - Starting And Operating - Jeep Liberty Owner's ManualJeep Liberty: Tread Wear Indicators

Tread wear indicators are in the original equipment tires to help you in determining when your tires should be replaced.

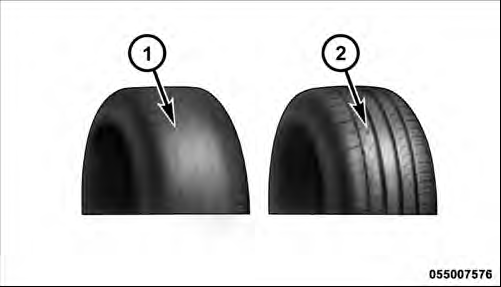

1 — Worn Tire
1 — Worn Tire
2 — New Tire

These indicators are molded into the bottom of the tread grooves. They will appear as bands when the tread depth becomes 1/16 in (2 mm). When the tread is worn to the tread wear indicators, the tire should be replaced.

CAUTION!
Proper operation of four-wheel drive vehicles depends on tires of equal size, type and circumference on each wheel. Any difference in tire size can cause damage to the transfer case. Tire rotation schedule should be followed to balance tire wear.

    Tire Spinning
    When stuck in mud, sand, snow, or ice conditions, do not spin your vehicle’s wheels above 30 mph (48 km/h). WARNING! Fast spinning tires can be dangerous. Forces generated by excessive wheel ...

    Life Of Tire
    The service life of a tire is dependent upon various factors including but not limited to: • Driving style • Tire pressure • Distance driven WARNING! Tires and the spare tire should b ...
