Toyota RAV4: Fuse layout and amperage ratings - Checking and replacing fuses - Do-it-yourself maintenance - Maintenanceand care - Toyota RAV4 Owner's ManualToyota RAV4: Fuse layout and amperage ratings

■ Engine compartment

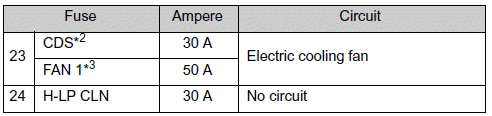

Type A (driver’s side)

*1: Vehicles with towing package

*1: Vehicles with towing package
*2: Vehicles with 2.5 L 4-cylinder (2AR-FE) engine
*3: Vehicles with 3.5 L V6 (2GR-FE) engine

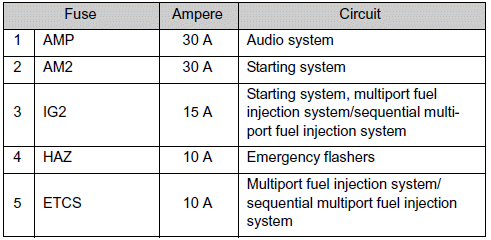

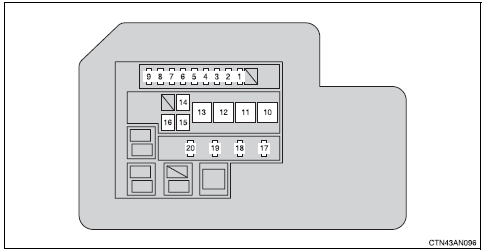

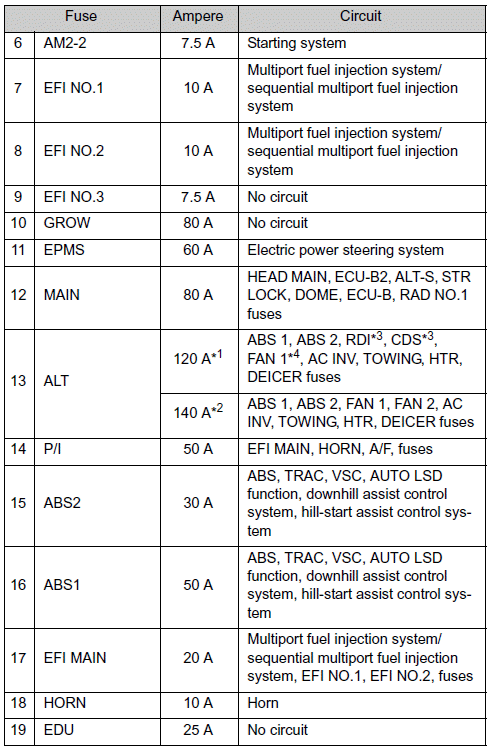

Type B (passenger’s side)

*1: Vehicles without towing package

*1: Vehicles without towing package
*2: Vehicles with towing package
*3: Vehicles with 2.5 L 4-cylinder (2AR-FE) engine
*4: Vehicles with 3.5 L V6 (2GR-FE) engine

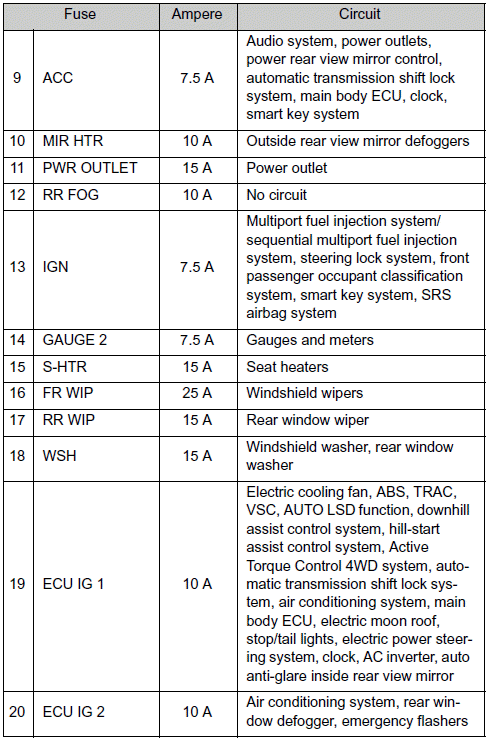

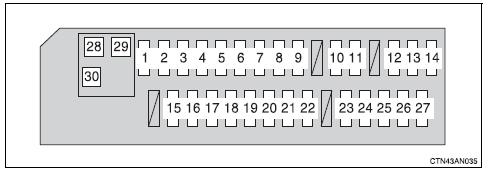

■ Under the instrument panel

*: Vehicles without smart key system

*: Vehicles without smart key system

■After a fuse is replaced

●If the lights do not turn on even after the fuse has been replaced, a bulb may need replacement.
●If the replaced fuse blows again, have the vehicle inspected by your Toyota dealer.

■If there is an overload in the circuits

The fuses are designed to blow, protecting the wiring harness from damage.

CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions. Failing to do so may cause damage, and possibly a fire or injury.

●Never use a fuse of a higher amperage rating than indicated, or use any other object in place of a fuse.
●Always use a genuine Toyota fuse or equivalent. Never replace a fuse with a wire, even as a temporary fix. This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.

NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Toyota dealer as soon as possible.

    Checking and replacing fuses
    If any of the electrical components do not operate, a fuse may have blown. If this happens, check and replace the fuses as necessary. 1 Vehicles without smart key system: Turn the engine switch off ...
