GMC Terrain: Climate Controls
The vehicle's heating, cooling, defrosting, and ventilation can be controlled with these systems.

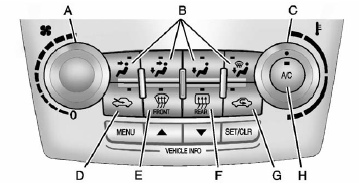

Climate Control System
A. Fan Control
B. Air Delivery Mode Controls
C. Temperature Control
D. Outside Air
E. Front Defrost
F. Rear Window Defogger
G. Recirculation
H. Air Conditioning

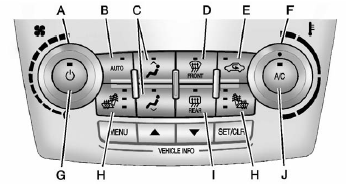

Automatic Climate Control System
A. Fan Control
B. AUTO (Automatic Operation)
C. Air Delivery Mode Controls
D. Front Defrost
E. Recirculation
F. Temperature Control
G. Power
H. Driver and Passenger Heated Seats
I. Rear Window Defogger
J. Air Conditioning
See Climate Control Systems on page 8‑1 (If Equipped) or Automatic Climate Control System on page 8‑3 (If Equipped).
