Jeep Liberty: Automatic Headlights — If Equipped - Lights - Understanding The Features Of Your Vehicle - Jeep Liberty Owner's ManualJeep Liberty: Automatic Headlights — If Equipped

This system automatically turns the headlights on or off according to ambient light levels. To turn the system on, turn the end of the multifunction lever to the AUTO position (third detent). When the system is on, the Headlight Time Delay feature is also on. This means the headlights will stay on for up to 90 seconds after you turn the ignition switch to the LOCK position. To turn the Automatic System off, turn the end of the multifunction lever out of the AUTO position.

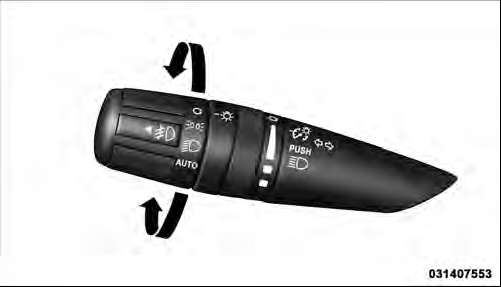

Headlight Switch
Headlight Switch

NOTE: The engine must be running before the headlights will turn on in the Automatic mode.

    Headlights And Parking Lights
    Turn the end of the multifunction lever to the first detent for parking light operation. Turn the end of the lever to the second detent for headlight operation. Headlight Switch ...

    Headlights With Wipers (Available With Automatic Headlights Only)
    When this feature is active, the headlights will turn on approximately 10 seconds after the wipers are turned on if the multifunction lever is placed in the AUTO position. In addition, the headli ...
