GMC Terrain: Automatic Climate Control System
The vehicle's heating, cooling, defrosting, and ventilation can be controlled with this system.

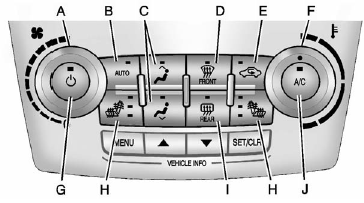

A. Fan Control
B. AUTO (Automatic Operation)
C. Air Delivery Mode Controls
D. Front Defrost
E. Recirculation
F. Temperature Control
G. Power
H. Driver and Passenger Heated Seats
I. Rear Window Defogger
J. Air Conditioning
Rear Window Defogger
REAR (Rear Defogger): Press to turn
the rear window defogger on or off. The rear window defogger turns off after about
10 minutes. It can also be turned off by turning the ignition to ACC/ACCESSO ...
Automatic Operation
The system automatically controls the fan speed, air delivery, air conditioning,
and recirculation to heat or cool the vehicle to the selected temperature.
When the AUTO indicator light is on, the ...
