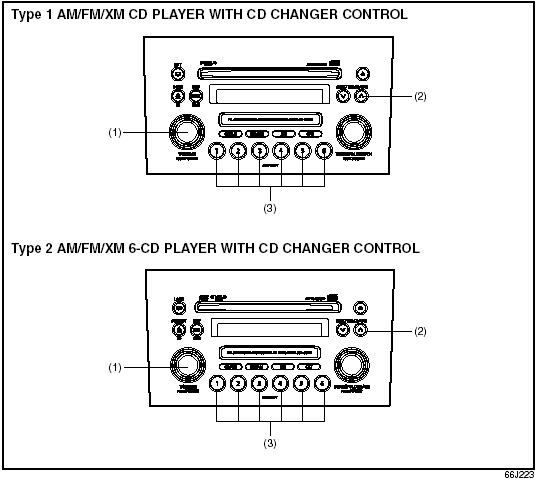

(1) Power on/off knob (2) Track up button/Fast forward button (3) Preset buttons
Anti-Theft Feature (1) Power on/off knob (2) Track up button/Fast forward button (3) Preset buttons (1 to 6)

The anti-theft feature is intended to discourage theft or the audio system by preventing the system from operating when it is moved to a different vehicle. This feature works by allowing you to enter a Personal Identification Number (PIN). When the audio system is disconnected from its power source, such as when the audio system is removed or the battery is disconnected, the system will not operate again unless the PIN is reentered.

Setting the Anti-Theft Function

1) Turn off the power by pressing the power on/off knob (1).

2) Press the power on/off knob (1) while pressing and holding the track up button

2) Press the power on/off knob (1) while pressing and holding the track up button (2). The “ENTRY 0000” will blink and the audio system enter PIN-input mode.

NOTE: Establish your PIN by combining numbers from 1 to 6 into any 4-digit number. If you forget your PIN, when you remove the battery for repair etc., you will no longer be able to operate the audio system.

3) Input the four digit PIN using preset buttons 1 to 6.

3) Input the four digit PIN using preset buttons 1 to 6.

4) After you enter your four digit PIN, the display will return to “0000”.

4) After you enter your four digit PIN, the display will return to “0000”.

5) Input the same 4-digit number you previously entered.

5) Input the same 4-digit number you previously entered.

6) The power of the audio system will turn off.

6) The power of the audio system will turn off.

NOTE: Write down your PIN for the future use.

Canceling Your Established PIN Setting

This operation is to be done when you want to cancel the anti-theft function or change your PIN. 1) Turn off the power by pressing the power on/off knob (1).

2) Press the power on/off knob (1) while pressing and holding the track up button

2) Press the power on/off knob (1) while pressing and holding the track up button (2). The “DELETE 0000” will blink and the audio system will enter the cancel mode.

3) Input your PIN. The power of the audio system will turn off and your PIN will

3) Input your PIN. The power of the audio system will turn off and your PIN will be deleted. To change your PIN, first delete your current PIN, then set a new one.

Confirming Your Personal Identification Number (PIN)

When the main power source is disconnected such as when you exchange your battery, etc, you will have to confirm your PIN to be able to use the audio system. To confirm your PIN:

1) Turn the ignition switch to the “ACC” position.

1) Turn the ignition switch to the “ACC” position.

2) Input your PIN. If the PIN that you input matches the registered PIN, the

2) Input your PIN. If the PIN that you input matches the registered PIN, the power of the audio system will turn off, and you will be able to operate the audio system.

NOTE:
• If you input your PIN incorrectly, “----” will be displayed and the anti-theft function lock mode is entered. If you enter an incorrect PIN fewer than 6 times, the locking time will be for 15 seconds; if you enter an incorrect PIN more than 6 times, the locking time will be for 15 minutes.
• If you forget your PIN and enter a wrong PIN, you can not perform any further operation.
